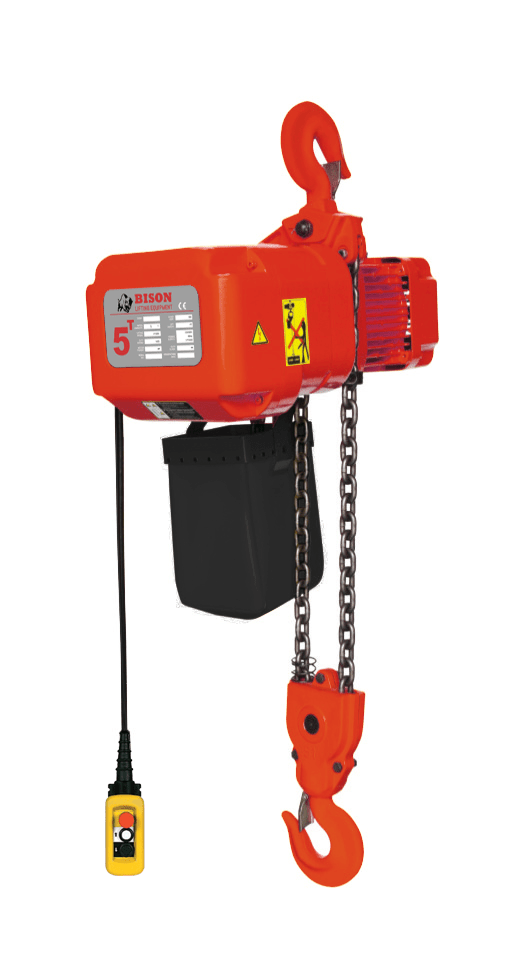

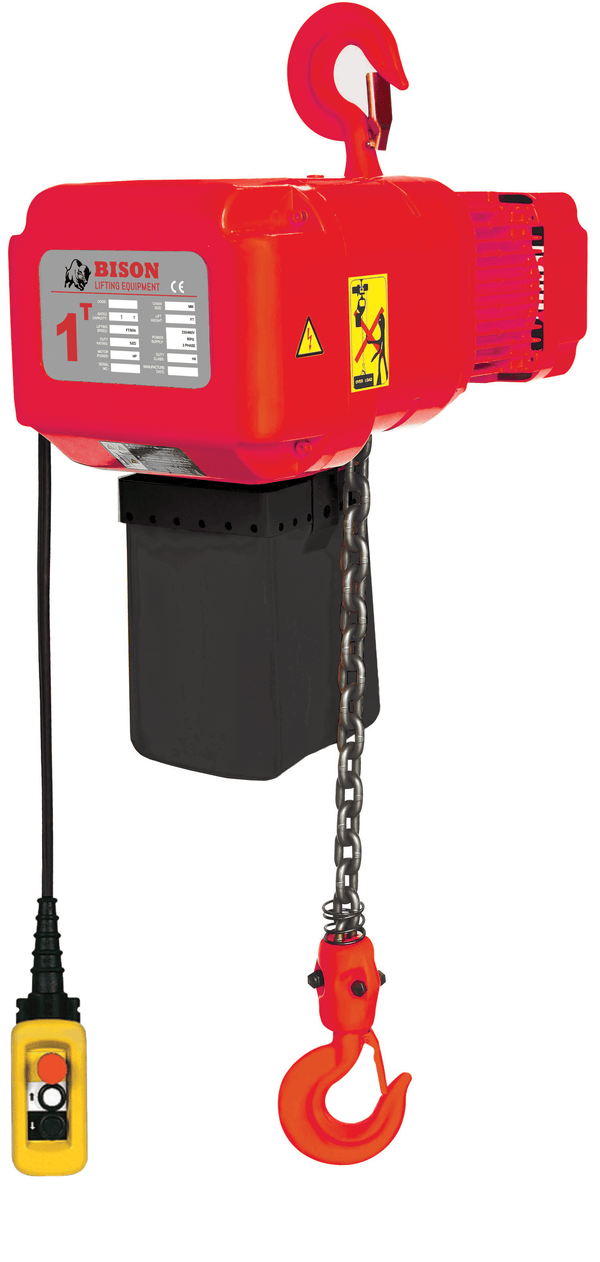

Bison 3 Phase, 2-Speed Electric Chain Hoist , 20 Ft, 230v/460v (1/2 - 5 Ton)

$2,900.00 $3,175.00

Shipping calculated at checkout

SKU: HHBD005SK-01D

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Available Now!

Trust
Icon

Trust
Icon

Three Phase Hoist - 2 Speed

Dual Speed Control. A second speed allows for a more controlled pick. Using the controller, the operator can start to lift (or lower) in the slow speed and then switch to the faster speed for efficiency. Dual speed hoists are highly recommended in environments where positioning fragile material. For example: loading CNC Machines, glass lifting, granite lifting etc.

Designed and built to last, these hoists are made for heavy-duty hoisting applications. The swing-down panel allows for quick and convenient access to the control panel during maintenance and inspections. These hoists are dual voltage and can be easily adjusted to suit 230 or 460-volt power supply.


Included:

    • 20 Ft. Standard lift (custom lifts available).
    • 15 Ft. Power cord.
    • 16’9 Ft. Standard Pendant cord.
    • Schneider™ contactors.
    • 30 Minute duty rating, H4 Classification.
    • Ergonomic push button pendant controller (IP65).
    • Pull-rotor motor brake.
    • Chain Container (on standard lifts).
    • Load test / Inspection Certificate.
    • Swivel electrical panel.
    • Upper and lower limit switches.



 20 Ft. Lift Height, Chain Container Included, 17 Ft. Pendent, 208-230V 3 Phase or 460V 3 Phase, Swivel Bottom Hook, Single Chain Fall, Complies with ASME B30.16

1/2 Ton Lifting Speed: 10/31 Ft/Min, Headroom: 18.1 inches, Rigid Top Hook
1 Ton Lifting Speed: 23.6/7.6 Ft/Min, Headroom: 20.15 inches
2 Ton Lifting Speed: 23.6/7.6 Ft/Min, Headroom: 22.5 inches
3 Ton Lifting Speed: 24/4.8 Ft/Min, Headroom: 30.95 inches
5 Ton Lifting Speed: 7.2/2.3 Ft/Min, Headroom: 40.50 inches



Three Phase Hoist - 2 Speed Specs
