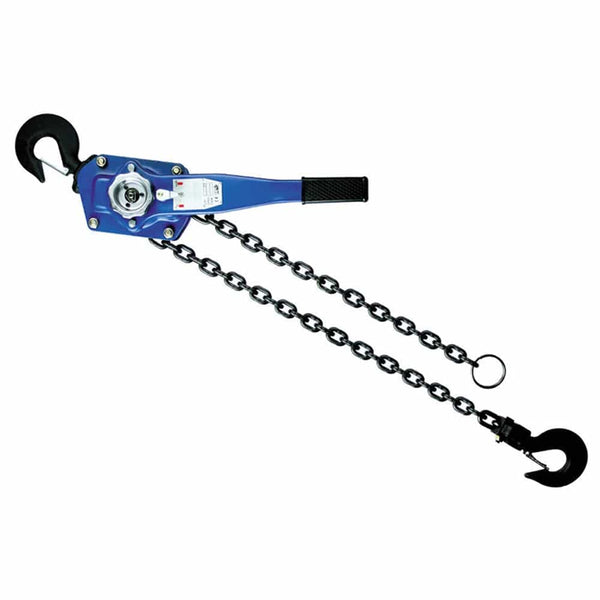

3 Ton Lever Chain Puller Chain Hoist Lift

$210.00

Shipping calculated at checkout

SKU: LCPR300F5

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Only 7 left!

Trust
Icon

Trust
Icon

4 Lengths Available


3 Ton Chain Puller Chain Hoist Ratchet Lever Lift

This 3 ton chain hoist 5 ft. system provides easy free chaining and 360° handle rotation. Reliable disc brake holds the load in free chain mode. Premium alloy chain. This chain hoist equipped with hardened top and bottom shipyard hooks. Short handle stroke requires about 72 lb.

Minimum Load for this chain puller to work properly: 134 lb.

Specifications:

  • Rated Capacity: 3 Ton
  • Tested Load: 3.83 Ton
  • Standard Lift: 5', 10', 15', 20' / 4 Sizes Available
  • Chain diameter: 13/32 in.
  • Between Hook Distance: 18-7/8 in.
  • Handle length: 16-1/7"
  • Top Hook Opening Max: 1-3/8'
  • Net weight: 48.6 LBS
  • Minimum Working Load: 134 LBS
  • Effort Required to Lift Rated Load: 72 LBS

Similar chain come along products:

  • 2 Ton Chain Block 10 ft. Lift
  • 1-1/2 Ton Chain Puller 10 ft. Lift
  • 3 Ton Chain Come-A-Long 10 ft. Lift
  • 6 Ton Chain Hoist 10 ft. Lift
