Bison Single Phase Electric Chain Hoist, 20 ft, 115/230v (1/4 - 5 Ton)

$2,147.97 $2,226.00

Shipping calculated at checkout

SKU: HH-B0025

Customer Reviews

No reviews yet
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Available Now!

Trust
Icon

Trust
Icon

 Single Phase Hoist

Make hoisting convenient with Bison Single Phase hoists. Ideal in environments where 3-phase power is not readily available. The single phase units are dual voltage and can be simply adjusted to suit either 115v or 230v. Review the Hoist Outline below for all specifications.

Included:

  • 20 Ft. Standard lift (custom lifts available).
  • 15 Ft. Power cord.
  • 16’9 Ft. Standard Pendant cord.
  • Schneider™ contactors.
  • H3 Classification.
  • Ergonomic push button pendant controller (IP65).
  • Electromagnetic load brake.
  • Chain Container (on standard lifts)
  • Load test / Inspection Certificate
Single Phase Hoist Specs

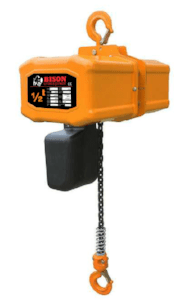

1/4 Ton Lifting Speed: 17 Ft/Min, Headroom: 21.5 inches, 20 Ft. Lift Height, Chain Container Included, 17 Ft. Pendent, 115v Single Phase or 230v Single Phase, Swivel Top and Bottom Hook, Single Chain Fall, Complies with ASME B30.16
1/2 Ton Lifting Speed: 17 Ft/Min, Headroom: 21.5 inches, 20 Ft. Lift Height, Chain Container Included, 17 Ft. Pendent, 115v Single Phase or 230v Single Phase, Swivel Top and Bottom Hook, Single Chain Fall, Complies with ASME B30.16

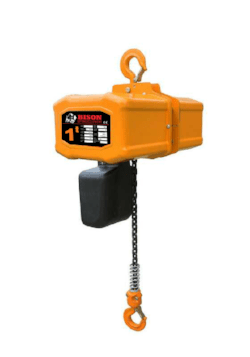

1 Ton Lifting Speed: 17 Ft/Min, Headroom: 22.8 inches, 20 Ft. Lift Height, Chain Container Included, 17 Ft. Pendent, 115v Single Phase or 230v Single Phase, Swivel Top and Bottom Hook, Single Chain Fall, Complies with ASME B30.16

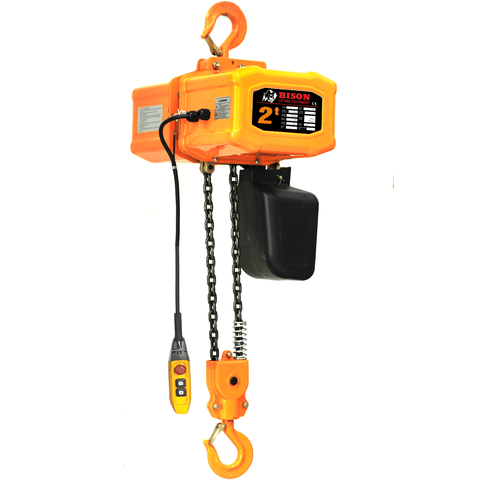

2 Ton Lifting Speed: 10.5 Ft/Min, Headroom: 29.1 inches, 20 Ft. Lift Height, Chain Container Included, 17 Ft. Pendent, 115v Single Phase or 230v Single Phase, Swivel Top and Bottom Hook, Double Chain Fall, Complies with ASME B30.16

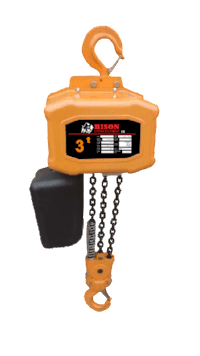

3 Ton Lifting Speed: 7 Ft/Min, Headroom: 31.1 inches, 20 Ft. Lift Height, Chain Container Included, 17 Ft. Pendent, 115v Single Phase or 230v Single Phase, Swivel Top and Bottom Hook, 3 Falls of Chain, Complies with ASME B30.16

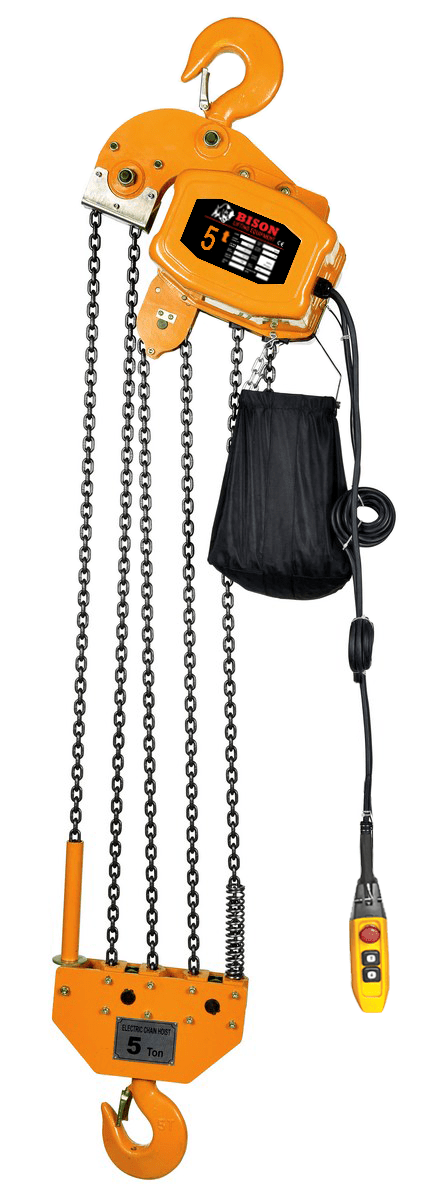

5 Ton Lifting Speed: 4.2 Ft/Min, Headroom: 37 inches, 20 Ft. Lift Height, Chain Container Included, 17 Ft. Pendent, 115v Single Phase or 230v Single Phase, Swivel Top and Bottom Hook, 5 Falls of Chain, Complies with ASME B30.16
Single Phase Hoist Specs
